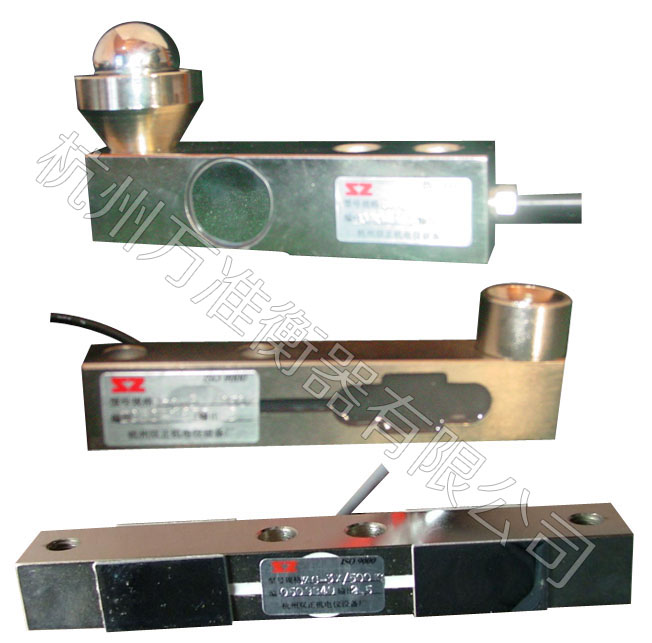

弹性体采用剪切悬臂梁结构，剪切盲孔的特殊设计和优良材质保证高灵敏度和高精度。表面镀镍，光亮防锈；多层胶封，符合IP-67密封标准。配用适当拉压附件，可适用于各种电子平台秤，料斗秤。本产品可与美国STS公司生产的65023型单悬臂梁式传感器互换。
The shear cantilever beam structure is adopted for the elastomer. The special design and good materiel of blind hole ensure both high sensitivity and high accuracy. The nickel plating surface is bright and resistant rust；multi-layers pouring pastern sealing is used and consistent with IP-67 sealing standard. Using pull-pressing accessories it is suitable for various electronical platform scales, hopper scales and can be reciprocated with 65023 type single cantilever beam load cell produced by STS (USA).
量程范围（Scaling Range [pound]）：
0.5k, 1k, 2k, 2.5k, 3k, 4k, 5k, 10k, 15k, 20k
[t]：0.1, 0.25, 0.5, 1, 1.5, 2, 2.5, 5, 7.5, 10
准确度等级（Accuracy Degree）：0.03
材质（Material）： 合金结构钢
技术指标(Technical Specification)：
|
技术参数 Technical parameter
|
单位 Unit
|
技术指标 Specification
|
|
输出灵敏系数Sensitivity
|
mV/V
|
3±0.0030
|
|
mV/V
|
2±0.0020(0.5~2t)
|
|
综合误差Synthetical error
|
% F.S
|
0.025
|
|
重复性Repeatability
|
% F.S
|
0.01
|
|
蠕变Creep(20min)
|
% F.S
|
0.03
|
|
零点恢复Zero recover(20min)
|
% F.S
|
0.03
|
|
零点输出Zero balance
|
% F.S
|
±1
|
|
零点温漂Temp. Effect on zero signal
|
% F.S /10℃
|
0.026
|
|
灵敏系数温漂Temp. Effect on sensitivity
|
% F.S /10℃
|
0.015
|
|
温度补偿范围Temp. Compensation range
|
℃
|
-10 ~ +55
|
|
安全温度范围Safe temp. range
|
℃
|
-40 ~ +70
|
|
输出阻抗Output resistance
|
Ω
|
350±3
|
|
输入阻抗Input resistance
|
Ω
|
385±10
|
|
绝缘电阻Insulation resistance
|
MΩ
|
>5000
|
|
推荐激励电压Nominal excitation voltage
|
V DC/AC
|
10
|
|
最大激励电压Max. Excitation voltage
|
V DC/AC
|
15
|
|
额定负荷时的挠度
|
mm
|
0.5
|
|
安全过载Safe load limit
|
% F.S
|
150
|
|
极限过载Breaking load
|
% F.S
|
300
|
|
电缆长度Cable length
|
m（四芯屏蔽电缆）
|
6 (或根据用户要求)
|
电缆接线标识（Cable Color）:
红——输入（+）；黑/兰——输入（-）；绿——输出（+）；白——输出（-）。
Red—Input（+）；Black/Blue——Input（-）；Green—Output(+)；White—Output(-)
选配附件（Option）：
钢球承载组件；球面承载压头；下安装墊块；可调活动支脚。
Steel ball bearing set；Sphere bearing head；Nether installation pad。
其他说明（Note）：
可按用户要求量程和外形尺寸供货。
We can supply according to scaling range and shape dimension required by users.

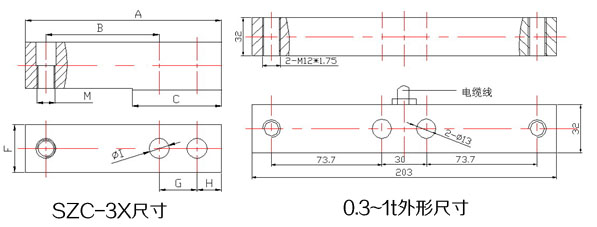

外形安装尺寸（Mounting Dimension）：
尺寸
量程
|
A
|
B
|
C
|
D
|
F>
|
G
|
H
|
M
|
I
|
100/250kg
500lb
|
130
5.12
|
76.2
3.00
|
57
2.25
|
25.4
1.00
|
31.8
1.25
|
25.4
1.00
|
15.8
0.62
|
M12′1.75
1/2.20UNF.2B
|
13.5
0.53
|
0.5/1/1.5/2t
1/2/2.5/3/4klb
|
132
5.12
|
76.2
3.00
|
57
2.25
|
32
1.25
|
32
1.25
|
25.4
1.00
|
15.8
0.62
|
M12′1.75
1/2.20UNF.2B
|
13.5
0.53
|
2.5/3/5t
5k/10klb
|
171.5
6.75
|
95.3
3.75
|
76
3.00
|
38.1
1.5
|
38.1
1.50
|
38.1
1.50
|
19.1
0.75
|
M18′1.50
3/4.16UNF.2B
|
19.8
0.78
|
7.5/10t
15k/20kb
|
225.6
8.88
|
123.9
4.88
|
102
4.00
|
50.8
2.00
|
50.8
2.00
|
50.8
2.00
|
25.4
1.00
|
M24′2
1.14UNS.2B
|
26.2
1.03
|
