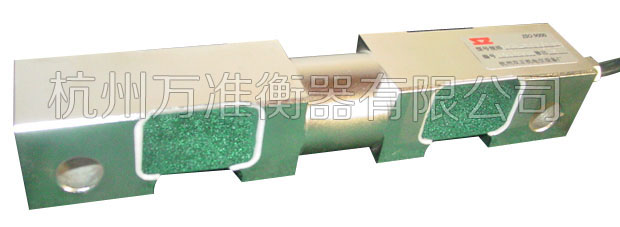

弹性体采用两端铰支双剪切樑结构，具有良好的抗偏载抗扭曲能力，特别适用于化工厂，饲料厂的电子料斗秤和料罐秤，既能提供秤体约束力，又允许其产生三维自由位移；表面镀镍，光泽防锈；多层封胶，符合IP-67密封标准。本产品可与美国STS公司生产的65016型传感器互换。
For its elastomer two shear beams is adopted, which is supported by two hinges in both ends and it has good ability for resisting slanting and twisting load. It is suitable for electronical hopper scales and drum-filling scales especially in chemical factory and fodder factory. It can provide bound force for scale body and allow three-dimension displacement. Nickel Plating is used for surface that is bright and resistant rust. Multi-layers pouring pastern sealing is used and consistent with IP-67 sealing standard. The load cell can be reciprocated with 65016 type load cell produced by STS (USA).
量程范围（Scaling Range [pound]）：
1k, 1.5k, 2k, 2.5k, 3k, 5k, 10k, 15k, 20k, 25k, 50k, 75k(LB)
[t]：0.5, 0.75, 1, 1.5, 2.5, 5, 7.5, 10, 25, 35
材质（Material）： 合金结构钢
技术指标(Technical Specification)：
|
技术参数 Technical parameter
|
单位 Unit
|
技术指标 Specification
|
|
输出灵敏系数Sensitivity
|
mV/V
|
3±0.0075
|
|
综合误差Synthetical error
|
% F.S
|
0.03
|
|
重复性Repeatability
|
% F.S
|
0.01
|
|
蠕变Creep(20min)
|
% F.S
|
0.03
|
|
零点恢复Zero recover(20min)
|
% F.S
|
0.03
|
|
零点输出Zero balance
|
% F.S
|
±1
|
|
零点温漂Temp. Effect on zero signal
|
% F.S /10℃
|
0.026
|
|
灵敏系数温漂Temp. Effect on sensitivity
|
% F.S /10℃
|
0.015
|
|
温度补偿范围Temp. Compensation range
|
℃
|
-10 ~ +65
|
|
安全温度范围Safe temp. range
|
℃
|
-20 ~ +70
|
|
输出阻抗Output resistance
|
Ω
|
700±2
|
|
输入阻抗Input resistance
|
Ω
|
770±10
|
|
绝缘电阻Insulation resistance
|
MΩ
|
>5000
|
|
推荐激励电压Nominal excitation voltage
|
V DC/AC
|
10
|
|
最大激励电压Max. Excitation voltage
|
V DC/AC
|
15
|
|
安全过载Safe load limit
|
% F.S
|
150
|
|
极限过载Breaking load
|
% F.S
|
300
|
|
电缆长度Cable length
|
M（四芯屏蔽电缆）
|
7.5(或根据用户要求)
|
电缆接线标识（Cable Color）:
红——输入（+）；黑/兰——输入（-）；绿——输出（+）；白——输出（-）。
Red—Input（+）；Black/Blue——Input（-）；Green—Output(+)；White—Output(-)
其他说明（Note）：
可按用户要求量程和外形尺寸供货。
We can supply according to scaling range and shape dimension required by users.

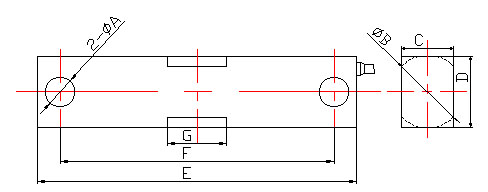

外形安装尺寸（Mounting Dimension）：
尺寸
量程
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
1k~5kLB
500kg~2500kg
|
(inch)0.50
(mm)12.7
|
1.25
31.8
|
1.25
31.8
|
1.25
31.8
|
7.50
190.5
|
6.25
158.8
|
1.12
28.5
|
10k~25kLB
5000kg~10000kg
|
(inch)0.81
(mm)20.6
|
2.00
50.4
|
1.44
36.6
|
1.94
49.3
|
8.75
222.3
|
7.50
190.5
|
1.62
41.2
|
50k~75kLB
25000~35000kg
|
(inch)1.31
(mm)33.3
|
3.00
76.2
|
2.44
62.0
|
2.94
74.7
|
13.50
343
|
11.50
292.1
|
3.25
82.6
|
